4New SFD Series Sterile Filter Device

Short Description:

4New SFD is a sterile filter device to get fine filter and intercept bacteria in the coolant. With de-oil and supplement effective ingredients to maintain the required performance, the coolant can be run day after day for a long time. There will be no waste liquid discharge.


Product Detail

4New SFD Series Sterile Filter Device

Purify and sterilize the coolant abidingly, to use with regeneration, no waste liquid discharge

4New SFD is a sterile filter device to get fine filter and intercept bacteria in the coolant. With de-oil and supplement effective ingredients to maintain the required performance, the coolant can be run day after day for a long time. There will be no waste liquid discharge.

The sterile filter device is mainly used for ultrafiltration and microfiltration levels of filtration. The overall function is integrated, and different filtration accuracies can be achieved by replacing the membrane core. The sterilization membrane adopts the form of "cross flow filtration" to achieve fluid process separation, that is, the raw material liquid flows at high speed in the membrane tube, and the permeate containing small molecules passes through the membrane vertically outward under pressure, while the concentrated solution containing large molecular components is intercepted by the membrane, thus achieving the purpose of fluid separation, purification, and concentration.

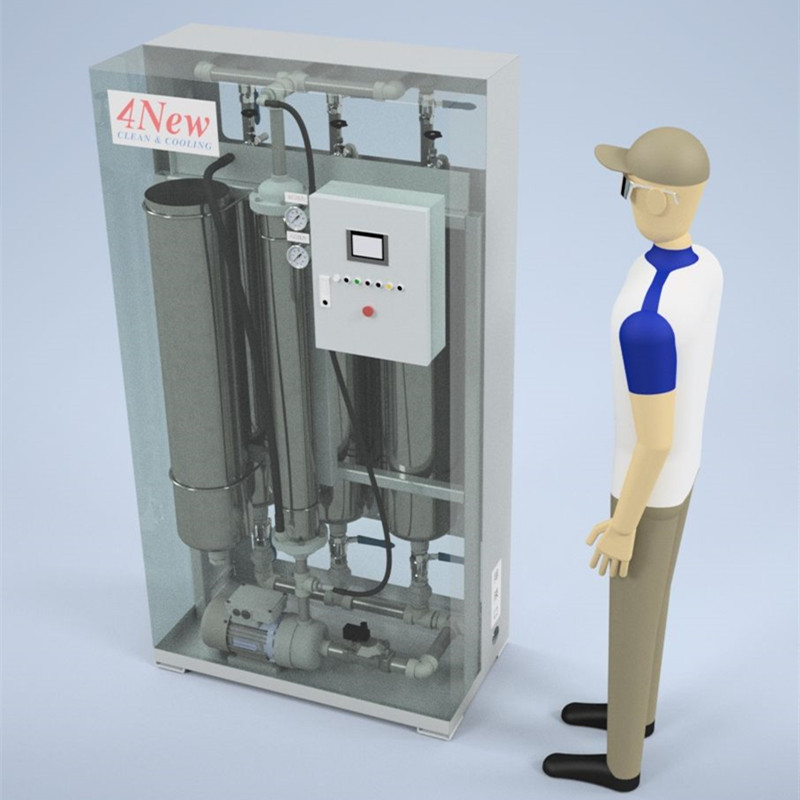

SFD Series Sterile Filter Device-3

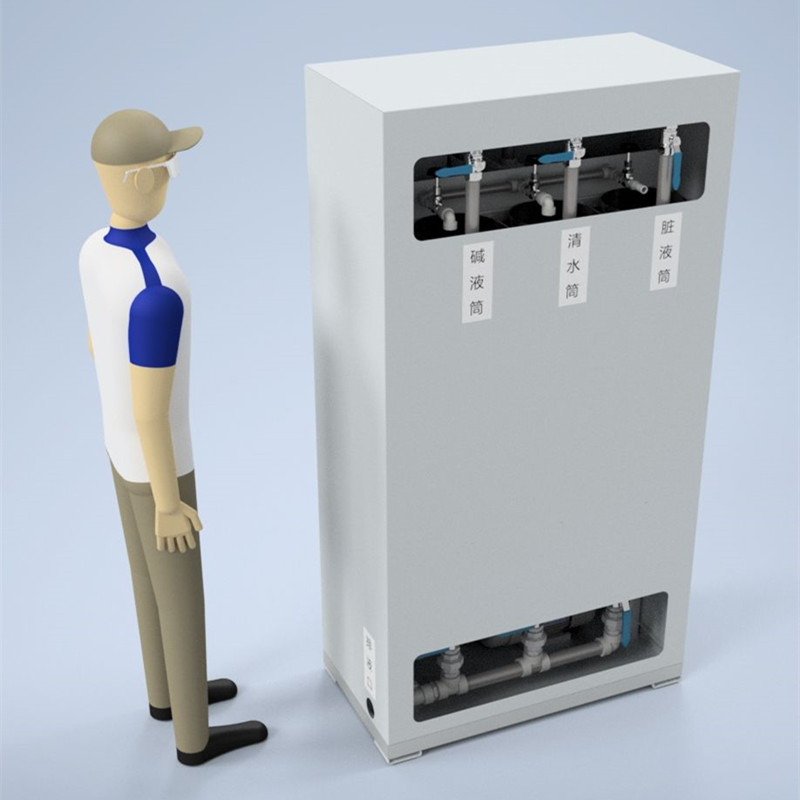

SFD Series Sterile Filter Device-2

Product Features

1. Adopting an integrated framework design, it can be installed and operated even in small spaces;

2. Due to the use of ceramic membranes for separation and filtration treatment, there is no need for wastewater treatment agents;

3. The system adopts 24-hour fully automatic control system, and the device adopts a simplified design for easy processing and operation.

Product Performance

1. High mechanical strength and good wear resistance;

2. High temperature resistance, suitable for high-temperature filtration processes;

3. Long service life, low overall equipment cost, and high cost-effectiveness;

4. Wide PH tolerance range, good acid resistance, alkali resistance, organic solvent resistance, and strong oxidant performance;

5. Easy to clean, capable of high-temperature disinfection and reverse flushing, suitable for Suitable filtration process for sterilization;

6. Long service life, with some industries having the service life greater than 5 years, low overall equipment cost, and high cost-effectiveness;

7. Automated, semi automated, and manual design systems are available for easy operation

8. Can achieve continuous feeding, continuous discharge of filter residue and filtrate;

9. Has high tangential flow velocity, reduces concentration polarization phenomenon on the membrane surface, and stabilizes membrane flux.

Product Application

1. Die casting release agent waste liquid;

2. Water soluble cutting and grinding fluid waste liquid;

3. Cleaning wastewater.

Product Show

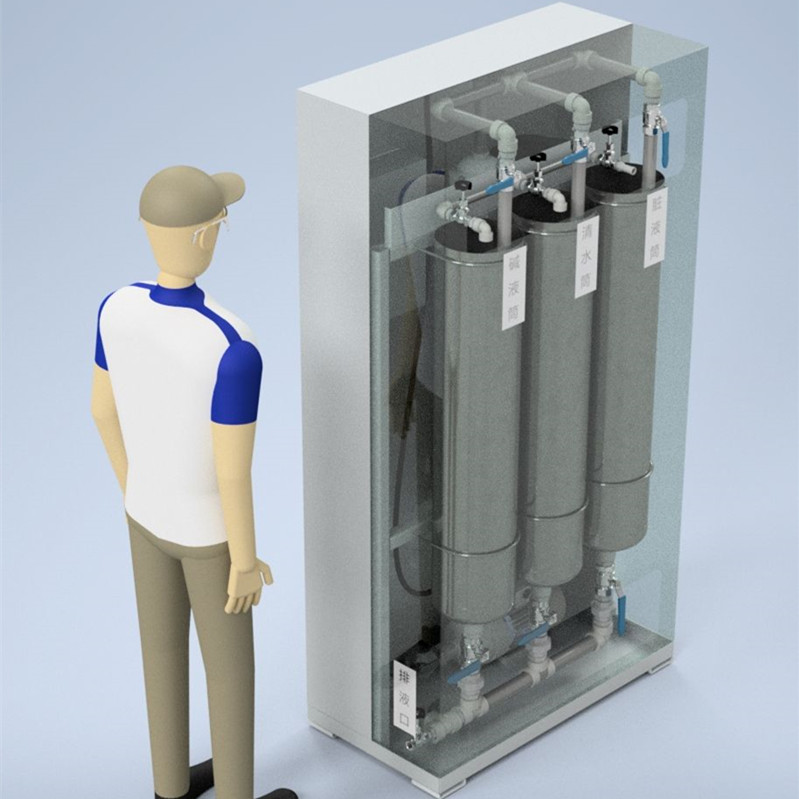

SFD Series Sterile Filter Device-4

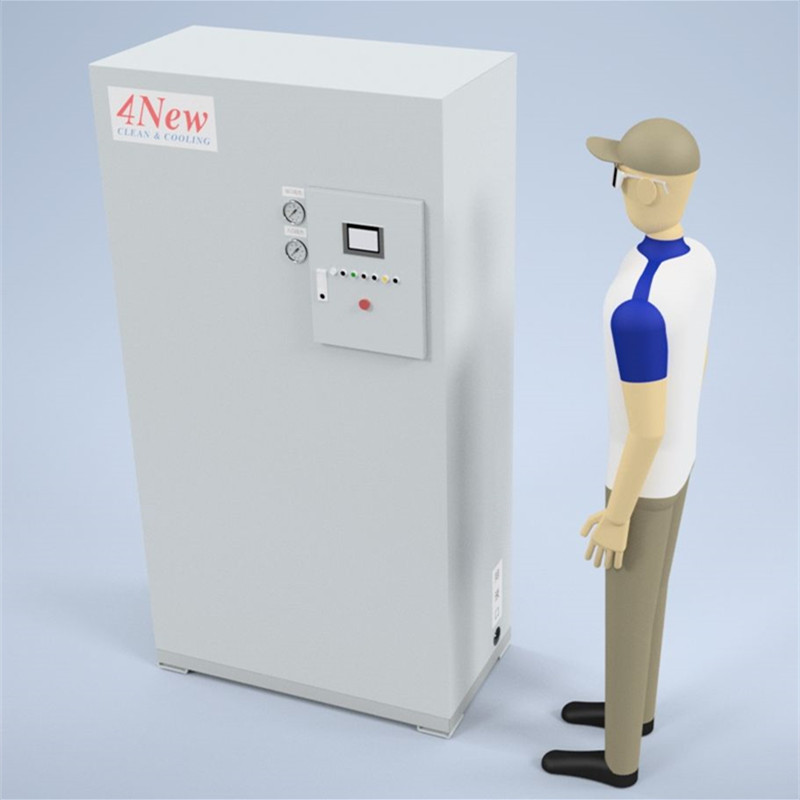

SFD Series Sterile Filter Device-1
SFD Series Sterile Filter Device-2
SFD Series Sterile Filter Device-3
